Widebody Virtual Pinball Cabinet -Flat Pack- Williams Pinball Company WPC style Premium Version

Pinballcabinet widebody template

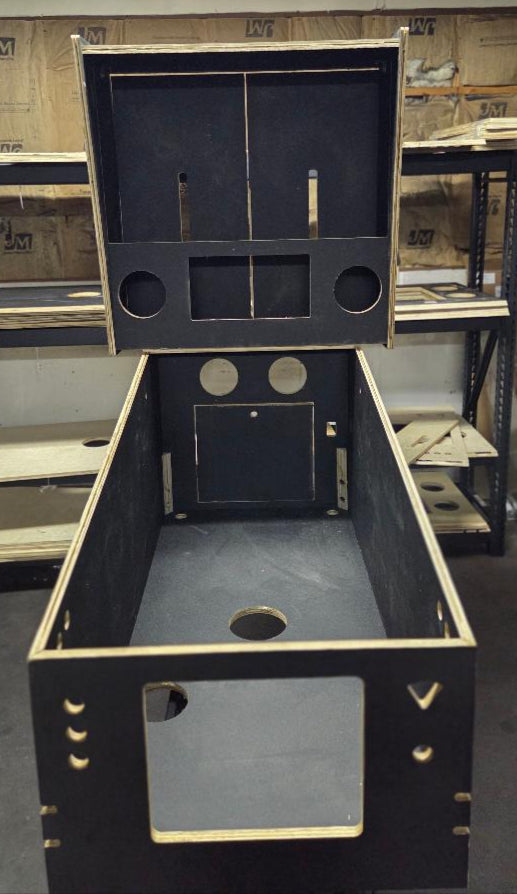

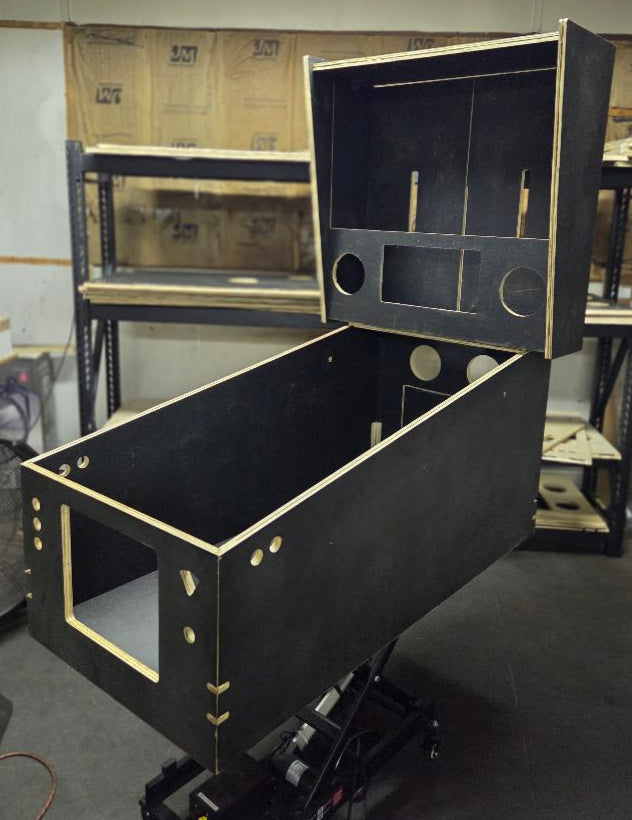

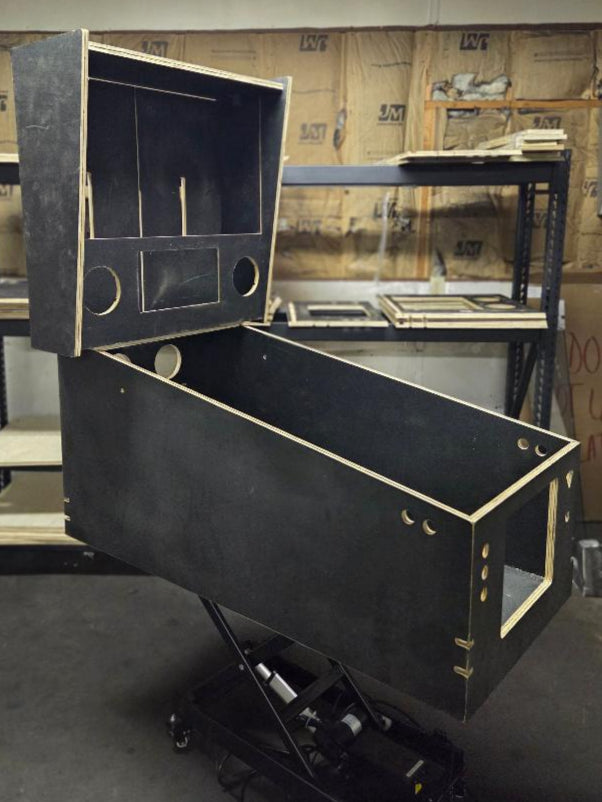

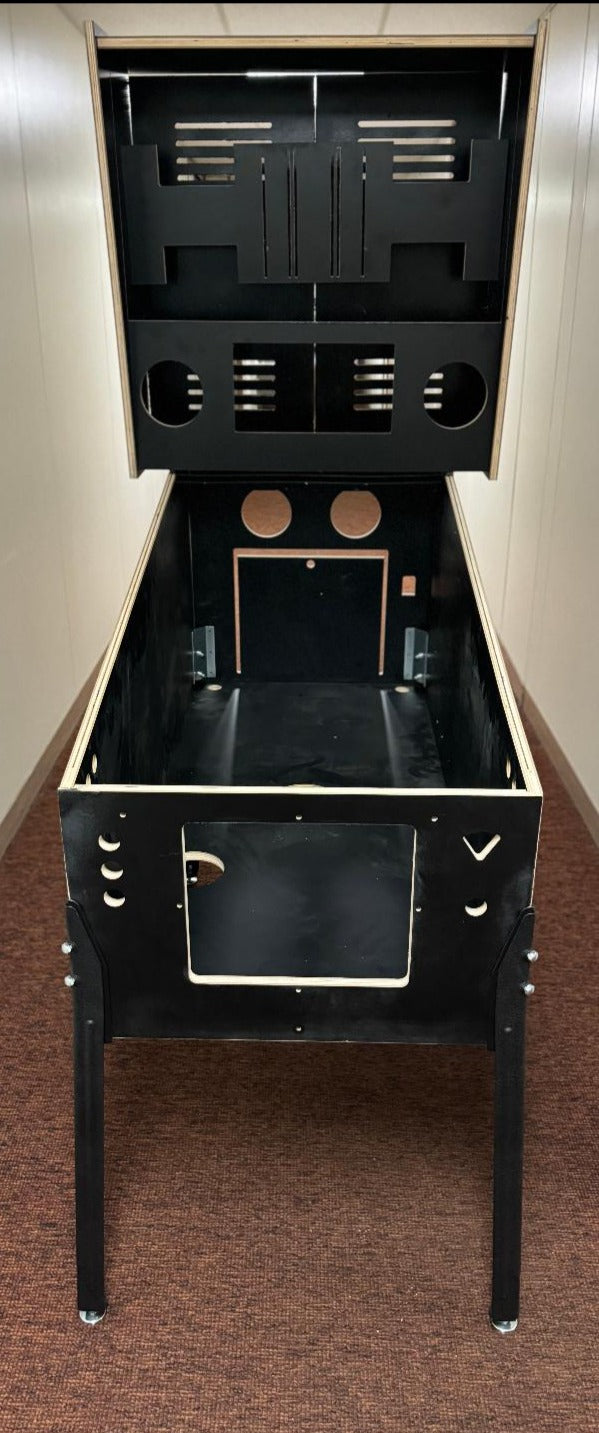

A Premium Virtual Pinball Cabinet Flat pack, including a full backbox. Precision cut using a CNC Machine and 3/4-inch high-quality high-quality black-coated birch plywood. This kit is designed to emulate an original Bally/Williams Style Widebody Pinball Cabinet. Inside playfield dimensions are 23.25" x 45" and will work with any standard accessories designed to fit a Bally/Williams widebody cabinet, including the Williams/Bally WPC Stainless Steel Side Rails, Widebody Size Stainless Steel Lockdown Bar, and Williams/Bally Widebody Playfield Glass Rear and side rail Channels. Legs in photos are not included.

Cabinet Revision Aug 15th 2025

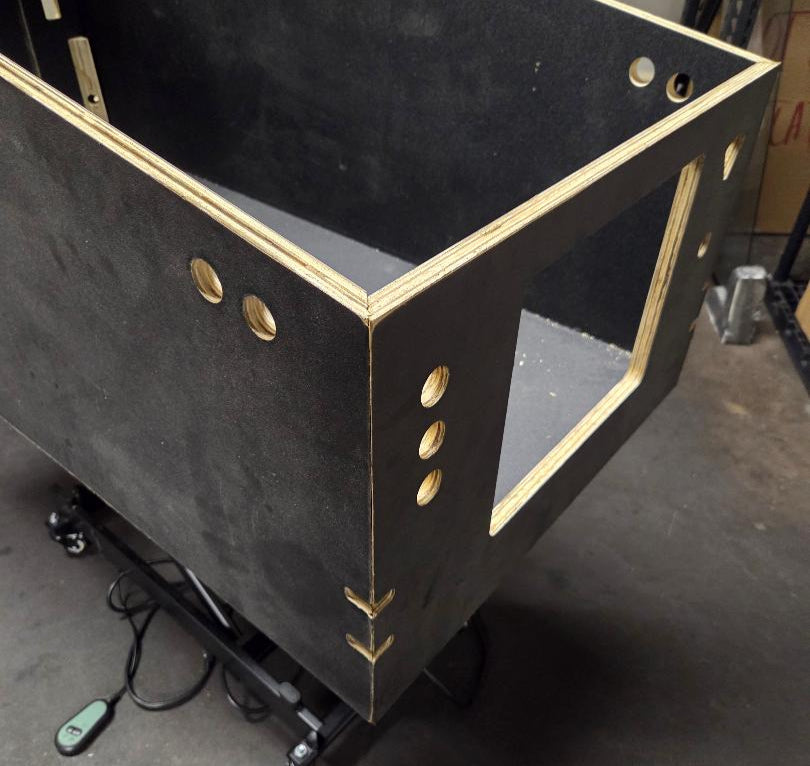

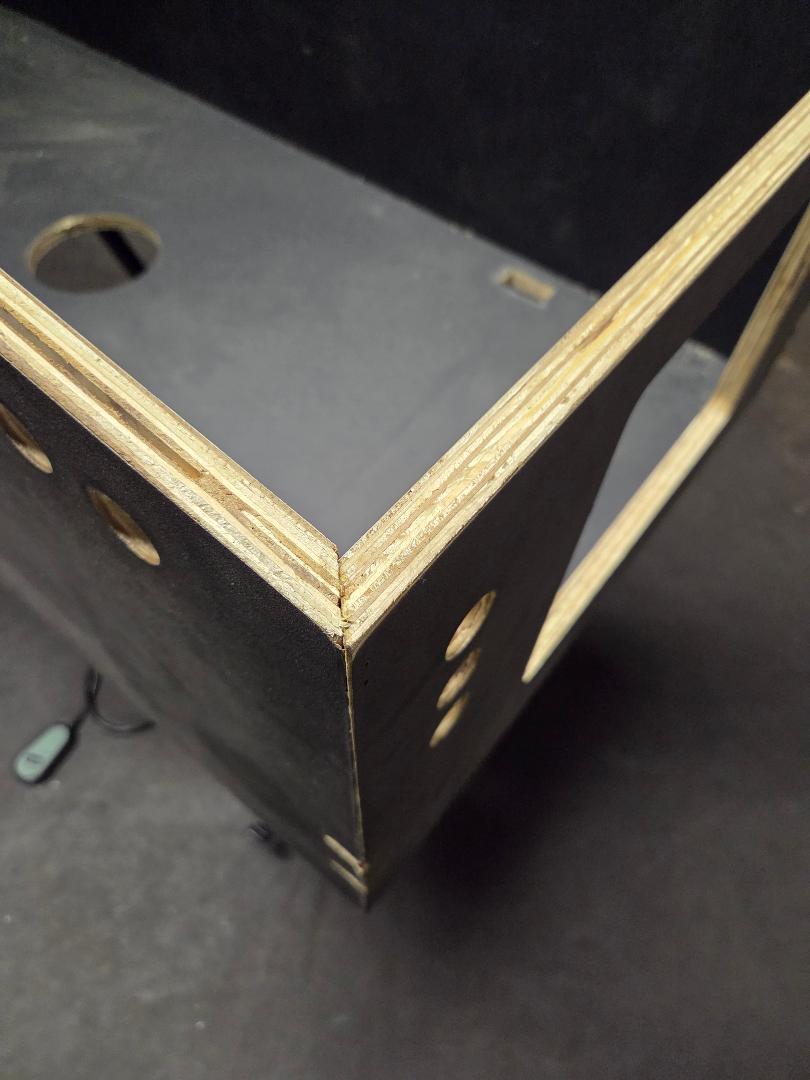

• The main cabinet has been redesigned and now is CNC cut with 45 degree Miter joints. The cabinet includes commercial grade Lamello connectors embedded in the 45 degree corners for easier assembly. These new corners eliminate the need to fill and sand the corners, again making the cabinet even easier to install then it was before. You will still need to use a high quality wood glue. Simply add glue to the corners assemble the corner you are working with then use the included allen wrench to tighten down the lamello connectors and strap overnight for an indestructible Virtual Pinball Cabinet.
• DMD / Speaker Panel, DMD install area in rear of panel has been increased in size to better support a larger variety of LCD laptop replacement screens and standalone 15.6 inch Screen's
• In addition due to customer feedback We have also eliminated the pre drilled starter holes in the main cabinet and backbox as these really did not serve much of a purchase and just created additional areas that needed to be filled in and sanded.
• If you would like the older design just let us know We can still get you one of those. (however I highly recommend this new design)

• We are now including small pre drilled starter holes on the inside of the cabinet for the monitor mount front brace and the rear pivot point for the monitor mount.
• CNC cut holes in the bottom of the backbox and sides of the main cabinet for backbox hinges.

1. The rear door or hatch for the Main cabinet has been increased in size to eliminate the gaps around the edges.

This flat pack is designed to work well with most 42-inch playfield tv/monitors and most 32-inch backglass tv/monitors and 15.6 inch Full DMD displays.

Unlike other companies, we understand that when you are ready to build your virtual pinball cabinet, you need your items shipped quickly. Shipping eta is 5 to 7 business days.

All of our virtual Pinball Cabinets will include:

• New 45 degree corners and included Lamello connectors for seamless corners.
• Pre-drilled button holes for pinball flippers, magnasaves, plunger, ball launch, start, back, and coin.
• Includes small pre drilled starter holes on the inside of the cabinet for the monitor mount front brace and the rear pivot point for Our monitor mount.
• CNC cut holes in the bottom of the backbox and side of the main cabinet for Stern Style backbox hinges
• Coin box area cutout for easy pinball coin box installation.
• 5.5 Subwoofer sub hole in middle of cabinet ( this will need to be modified based on your subwoofers dimensions)
• 1 Fan hole in bottom and 2 located in the rear plate.
• Pre-drilled holes for pinball cabinet leg bolts and leg plates.
• Pre-routed channels for pinball playfield glass side rails.
• Pre-cut speaker panel designed for 15.6-inch LCD DMD's and 5.25 inch speakers.

• Pre-routed channel for pinball backglass plexi.
• Pinball cabinet corner blocks and braces included!

• VESA mount for pinball backglass monitor installation included.
• Legs, Bolts and leg bracket pictured are not included

 This is a woodworking project, so please be prepared to use nails, screws, high-quality wood glue, clamps, sanders, and anything else needed to put the flatpack together.

AS is the case with any coated plywood some minor chipping and flaking may occur when shipping. This is easily remedied with a sander and small touch of filler.

All flatpack sales are final.
