Ultra Widebody Virtual Pinball Cabinet -Flat Pack- All IN Version Williams Pinball Company WPC style

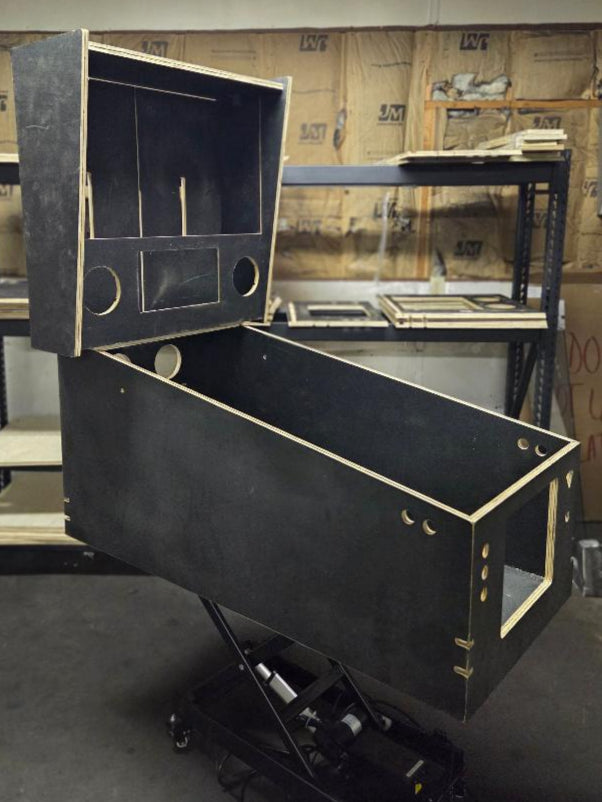

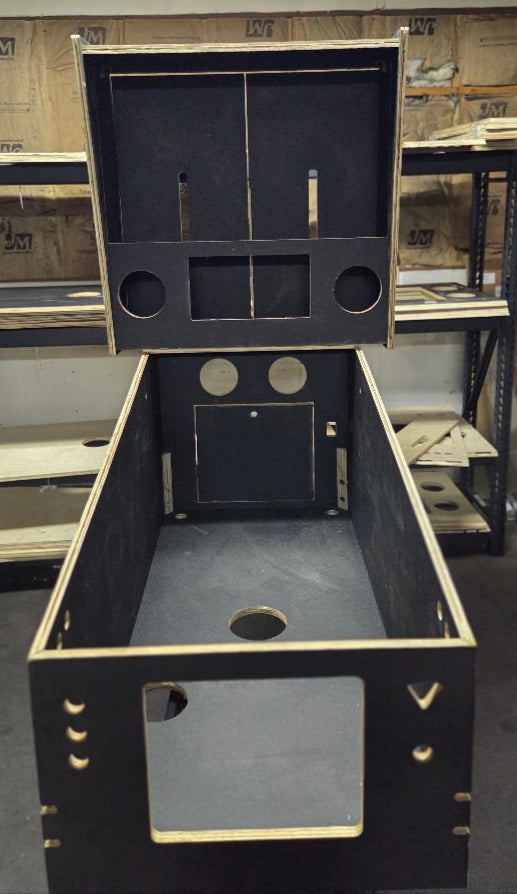

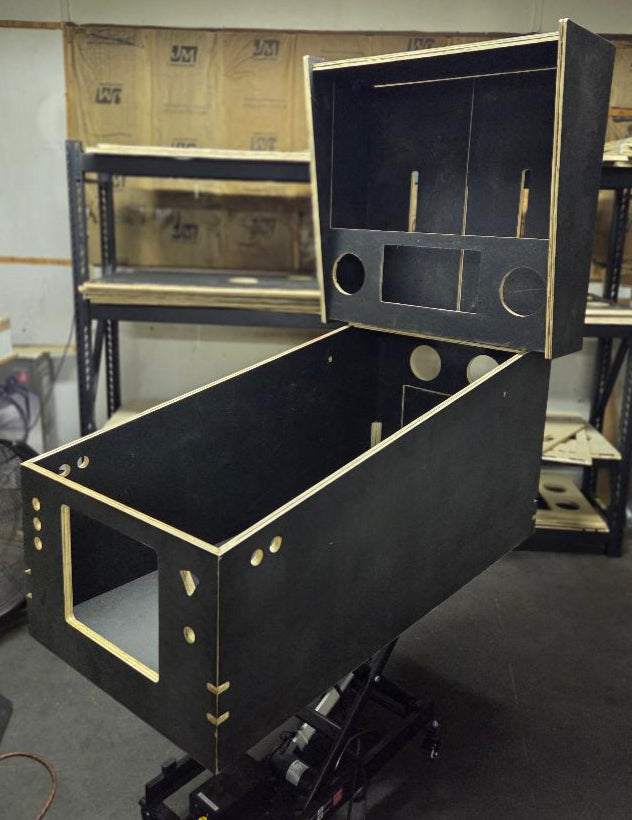

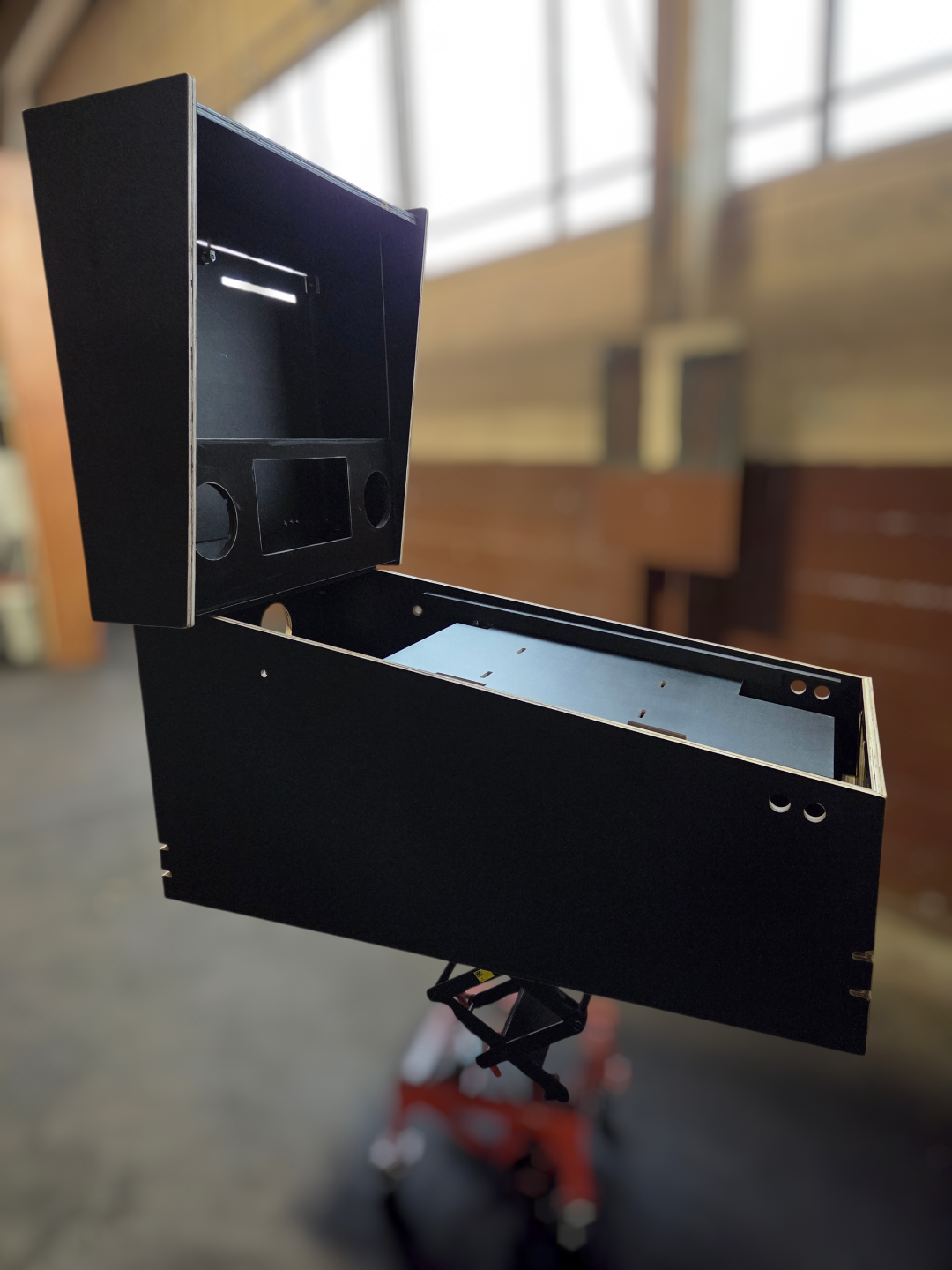

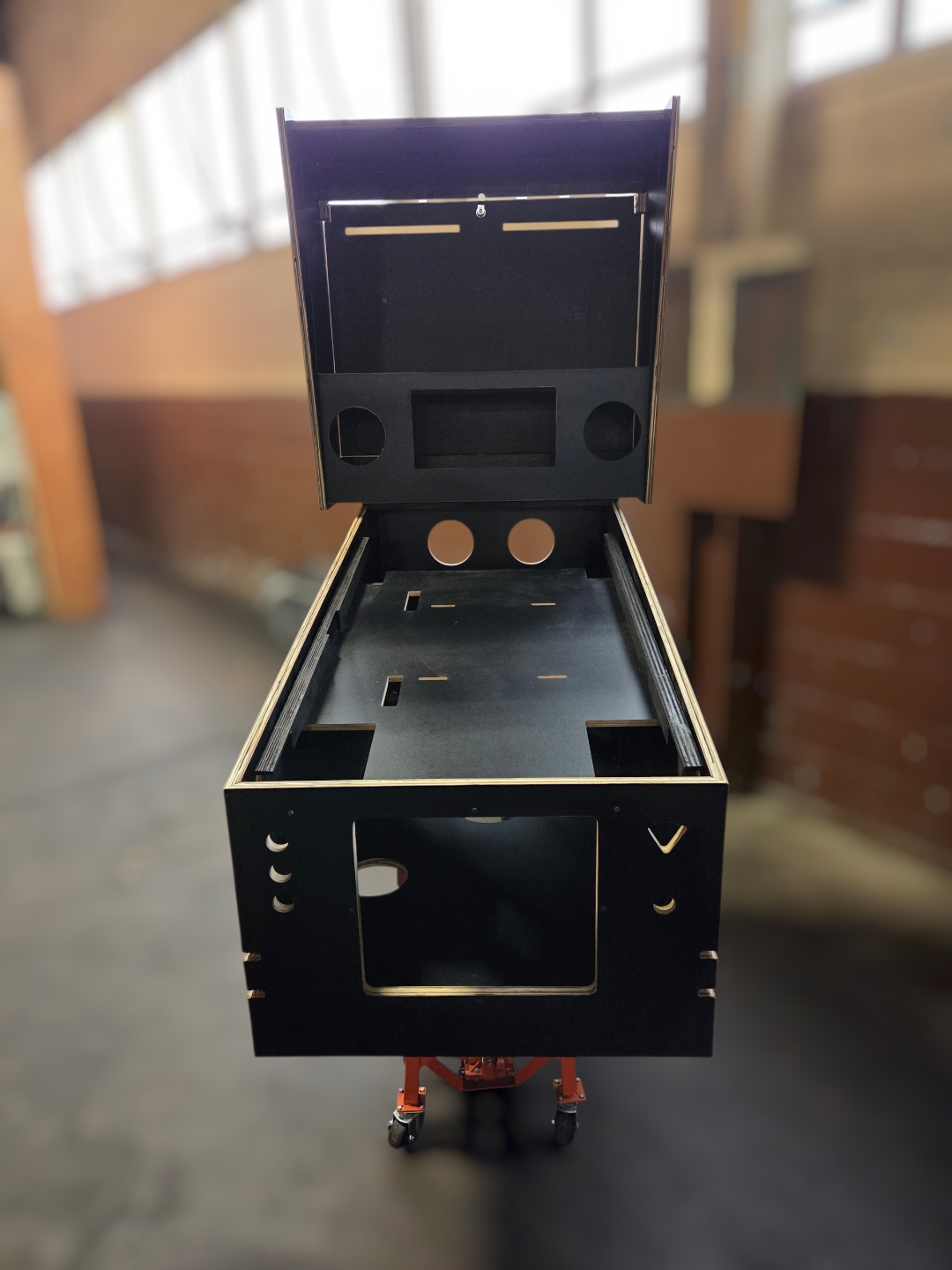

Introducing the All IN Virtual Pinball Cabinet Ultra Widebody Flat pack, including Our Premium Cabinet Precision cut using a CNC Machine and 3/4-inch high-quality black-coated birch plywood. This kit also includes Our Backglass Plexi, extra 3 board kit, playfield monitor system along with the Backbox routed for t-molding.

This kit is designed to emulate an original Bally/Williams Style but in an ultra widebody Pinball Cabinet format.

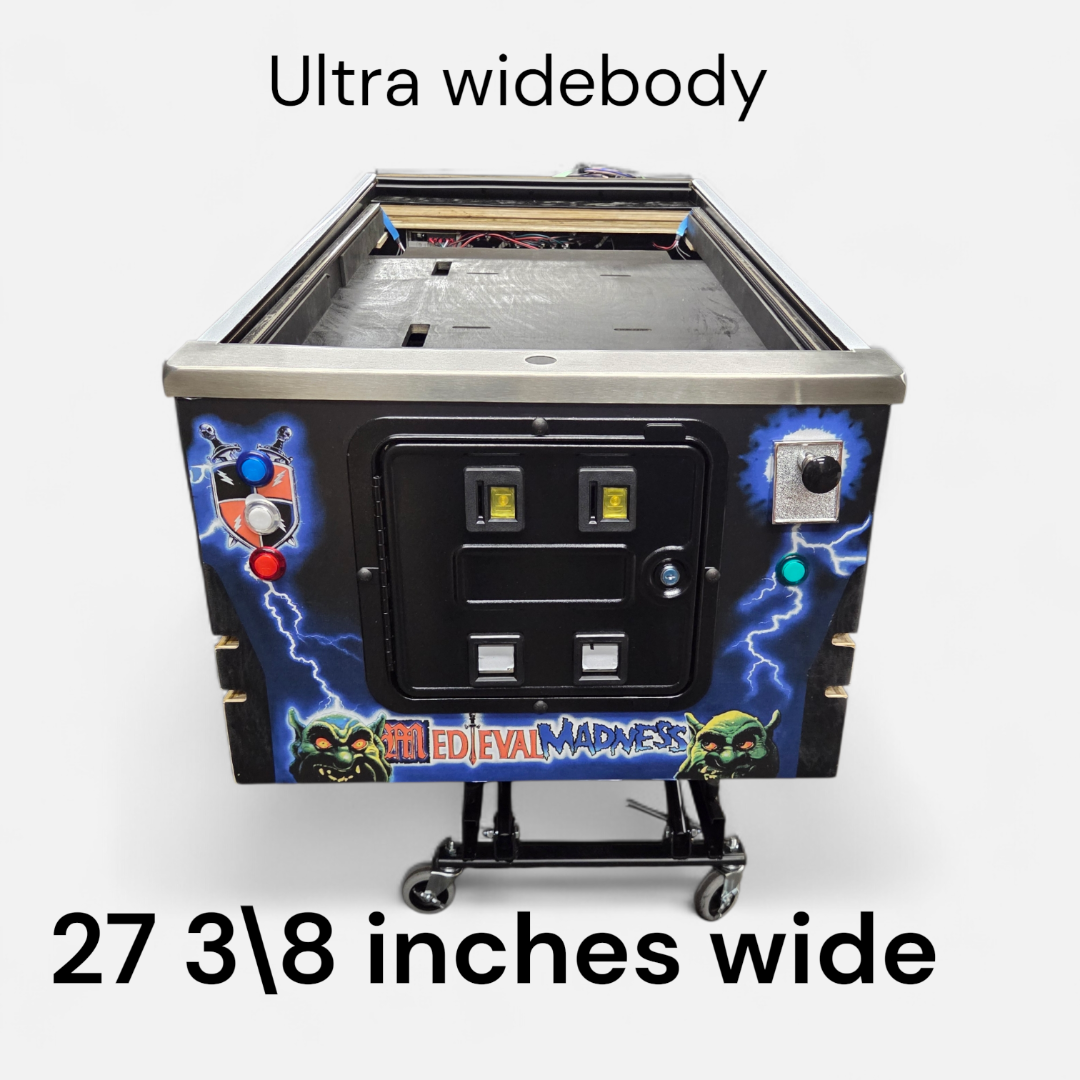

This kit is designed to work with the LG C series 48 inch OLED TV. Inside playfield dimensions are 26" x 45" and should work with any standard accessories designed to fit a Bally/Williams widebody cabinet, excluding the Widebody Size Stainless Steel Lockdown Bar, and Williams/Bally Widebody Playfield Glass.

Your Tempered glass will need to be sourced locally.  This should cut 43" X 26.5" inches and be 3/16"of an inch

Cabinet Revision Aug 15th 2025

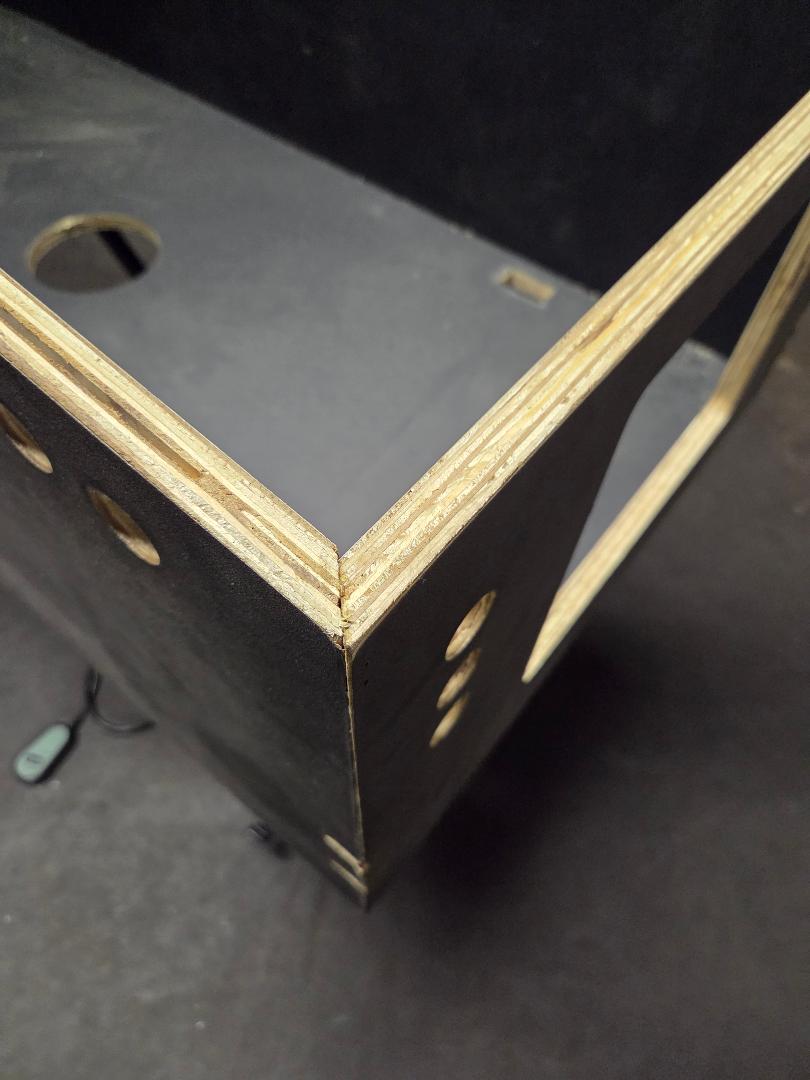

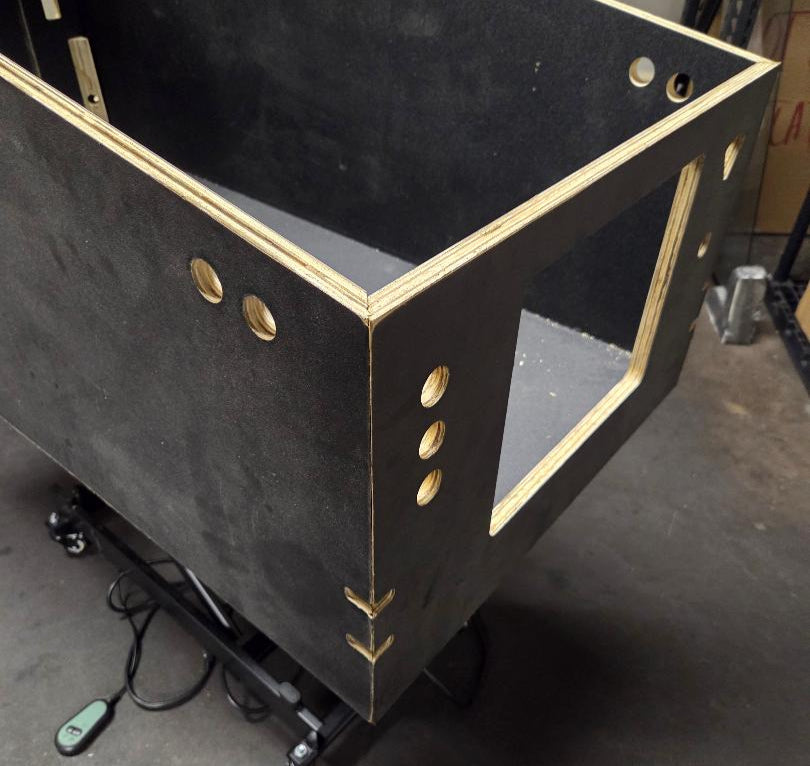

• The main cabinet has been redesigned and now is CNC cut with 45 degree Miter joints. The cabinet includes commercial grade Lamello connectors embedded in the 45 degree corners for easier assembly. These new corners eliminate the need to fill and sand the corners, again making the cabinet even easier to build then it was before. You will still need to use a high quality wood glue. Simply add glue to the corners assemble the corner you are working with. Then use the included allen wrench to tighten down the lamello connectors and a strap for an indestructible Virtual Pinball Cabinet.
• DMD / Speaker Panel, DMD install area in rear of panel has been increased in size to better support a larger variety of LCD laptop replacement screens and standalone 15.6 inch Screen's
• In addition due to customer feedback We have also eliminated the pre drilled starter holes in the main cabinet and backbox as these really did not serve much of a purchase and just created additional areas that needed to be filled in and sanded.
• Since the corners will no longer need to be sanded or filled in We can now Pre instal cabinet Vinyl. Vinyl must come from one of our preferred vendors to ensure the correct quality.

Cabinet Revision May, June 2025

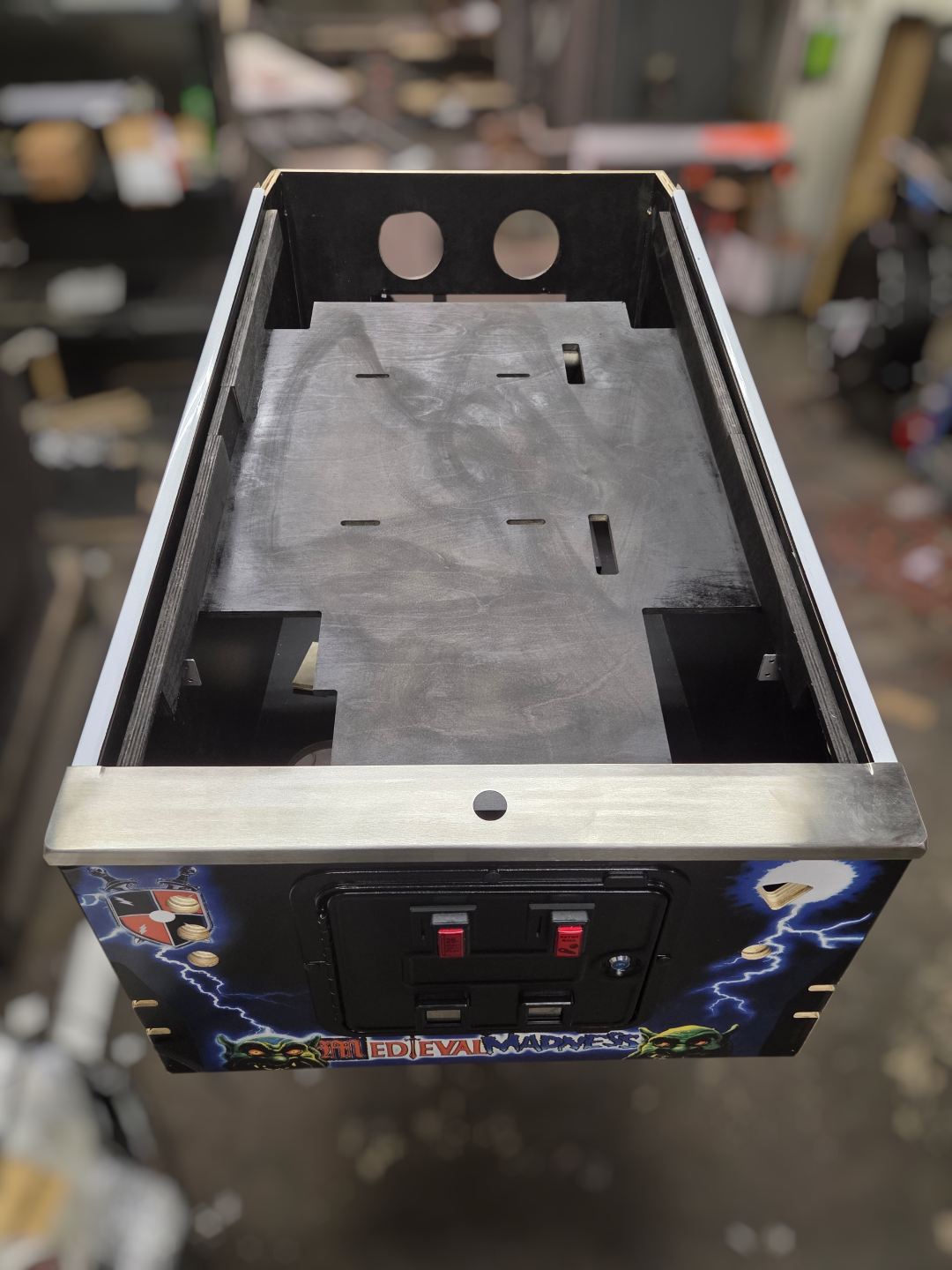

• We are now including small pre drilled starter holes on the inside of the cabinet for the monitor mount front brace and the rear pivot point for the monitor mount. For the ultra wide cabinets you have the choice of two holes to work with one set will mount the monitor parallel to the glass and the other will allow the monitor to sit inside the cabinet not parallel with the glass.

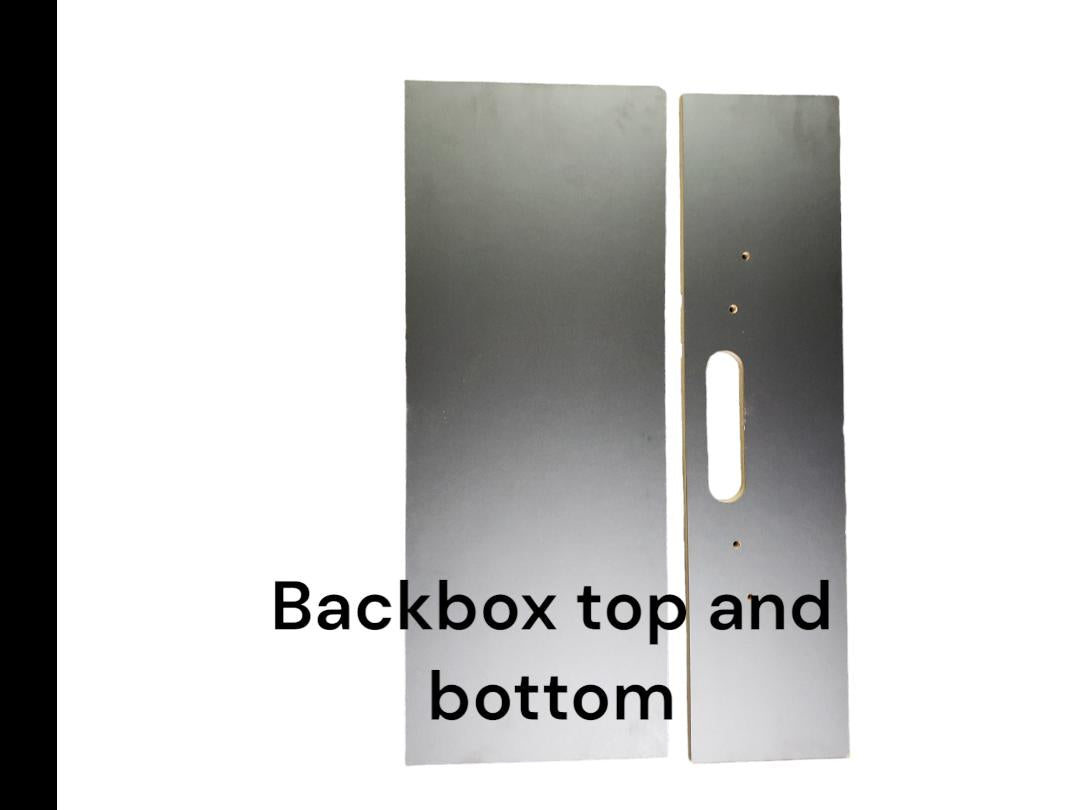

• CNC cut holes in the bottom of the backbox and sides of the main cabinet for backbox hinges. ( when moving your cabinet always remove the backbox and hinges)
• Backbox Plexi is now included with this model for Free

July 18th 2024

1. The rear door or hatch for the Main cabinet has been increased in size to eliminate the gaps around the edges.

This flat pack is designed to work well with most 48-inch playfield tv/monitors however it was specifically designed to work with the LG 48 inch C series OLED monitors and most 32-inch backglass tv/monitors and 15.6 inch Full DMD displays.

Unlike other companies, we understand that when you are ready to build your virtual pinball cabinet, you need your items shipped quickly. Shipping eta is 5 to 7 business days.

 All of our virtual Pinball Cabinets will include:

• Backglass Plexi-glass included for Free
• T-molding routing included for Free
• New 45 degree corners and included Lamello connectors for seamless No sand corners.

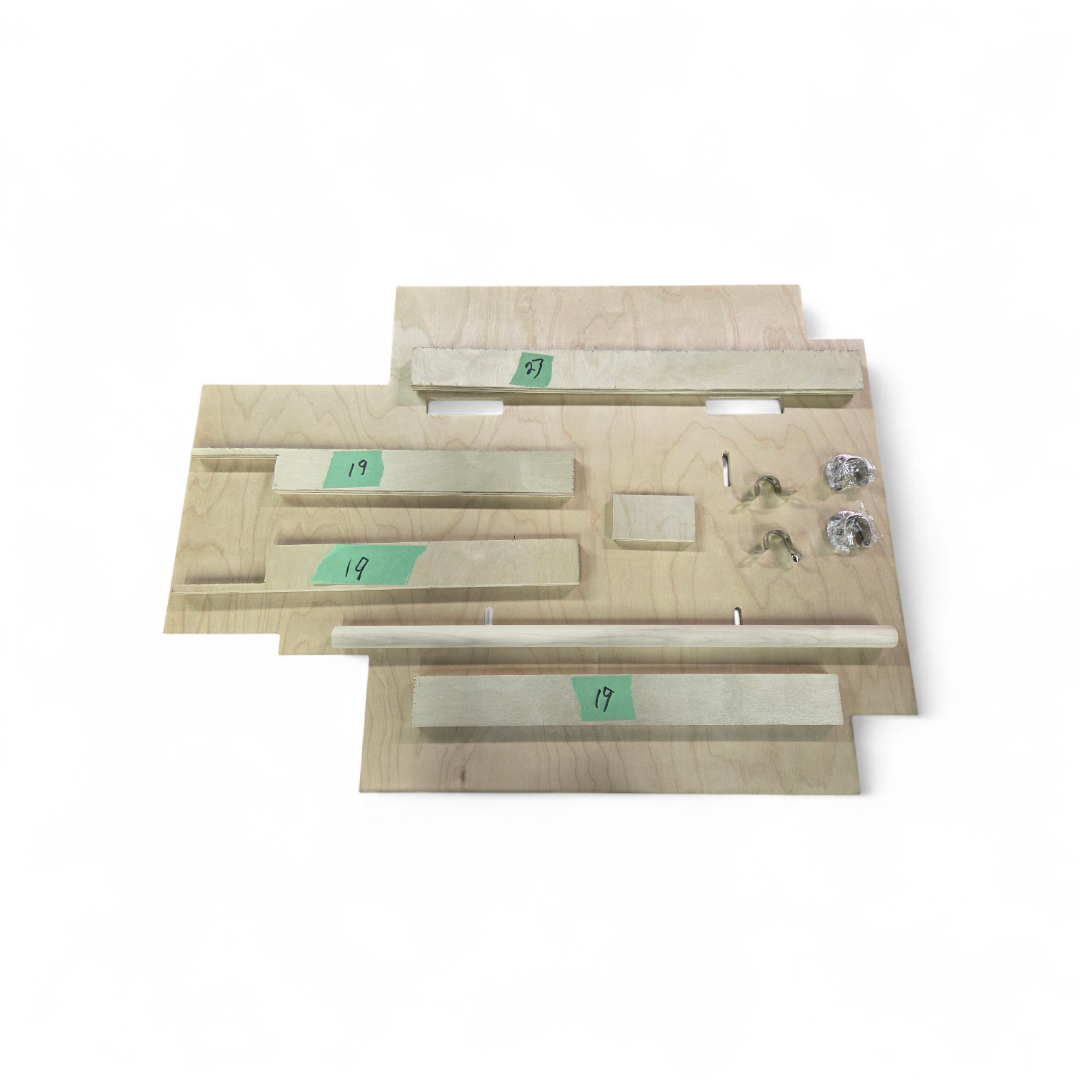

• Deluxe playfield monitor mounting system with rear matrix led board and plexi included for free
• 3 piece Extra board kit included for free
• Pre-drilled button holes for pinball flippers, magnasaves, plunger, ball launch, start, back, and coin.
• Includes small pre drilled starter holes on the inside of the cabinet for the monitor mount front brace and the rear pivot point for the monitor mount.
• CNC cut holes in the bottom of the backbox and side of the main cabinet for Stern Style backbox hinges
• Coin box area cutout for easy pinball coin box installation.
• 5.5 Subwoofer sub hole in middle of cabinet ( this will need to be modified based on your subwoofers dimensions)
• 1 Fan hole in bottom and 2 located in the rear plate.
• Pre-drilled holes for pinball cabinet leg bolts and leg plates.
• Pre-routed channels for pinball playfield glass side rails.
• Pre-cut speaker panel designed for 15.6-inch LCD DMD's and 5.25 inch speakers.

• Pre-routed channel for pinball backglass plexi.
• Pinball cabinet corner blocks and braces included!

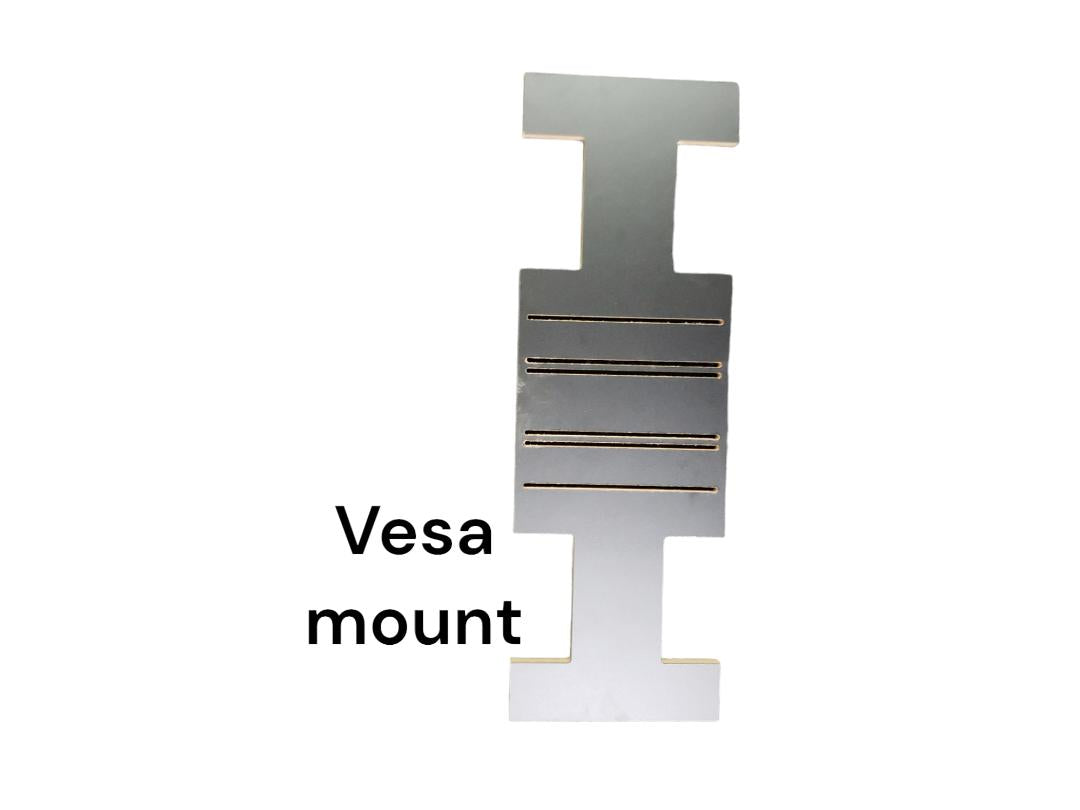

• VESA mount for pinball backglass monitor installation included.
• Legs, Bolts and leg bracket pictured are not included



Stern Style Black Powder Coated Metal DMD/Speaker panel specifically designed for our cabinet available for $175

A new easier to install Rear BackBox hatch system is available for $40 ( This is much easier to install than the traditional rear backbox Doors.

This is a woodworking project, so please be prepared to use nails, screws, high-quality wood glue, clamps, sanders, and anything else needed to put the flatpack together.

No Pinball Hardware is included with this flat pack. However We do offer an Ultra widebody Vpin Assembly kit with everything you need in a great low cost package.

All flatpack sales are final.
