Ultra Widebody 48 inch Monitor Virtual Pinball Cabinet Flat Pack

A Premium Virtual Pinball Cabinet Flat pack, including a full backbox. Precision cut using a CNC Machine and 3/4-inch high-quality black-coated birch plywood! The cabinet will require hours of less sanding, priming and painting as our original cabinet in the natural plywood. Its a huge time saver.  This kit is designed to work with the LG C series 48 inch OLED TV. Inside playfield dimensions are 26" x 45" and should work with any standard accessories designed to fit a Bally/Williams widebody cabinet, excluding the Widebody Size Stainless Steel Lockdown Bar, and Williams/Bally Widebody Playfield Glass.

Your Tempered glass will need to be sourced locally.  This should cut 43" X 26.5" inches and be 3/16"of an inch thick. Any additional Williams widebody parts will work with this cabinet, including the Williams/Bally WPC Stainless Steel Side Rails, and Williams/Bally Widebody Playfield Glass Rear and side rail Channels. Legs in photos are not included.

You can not install a rear matrix display in these cabinets if are choosing to go parallel with the glass. There is simply not enough room.

This flat pack is designed to work well with most 48-inch playfield tv/monitors however it was specifically designed to work with the LG 48 inch C series OLED monitors and most 32-inch backglass tv/monitors and 15.6 inch Full DMD displays.

Unlike other companies, we understand that when you are ready to build your virtual pinball cabinet, you need your items shipped quickly. Shipping eta is 5 to 7 business days.

Cabinet Revision Aug 15th 2025

Cabinet Revision Aug 15th 2025

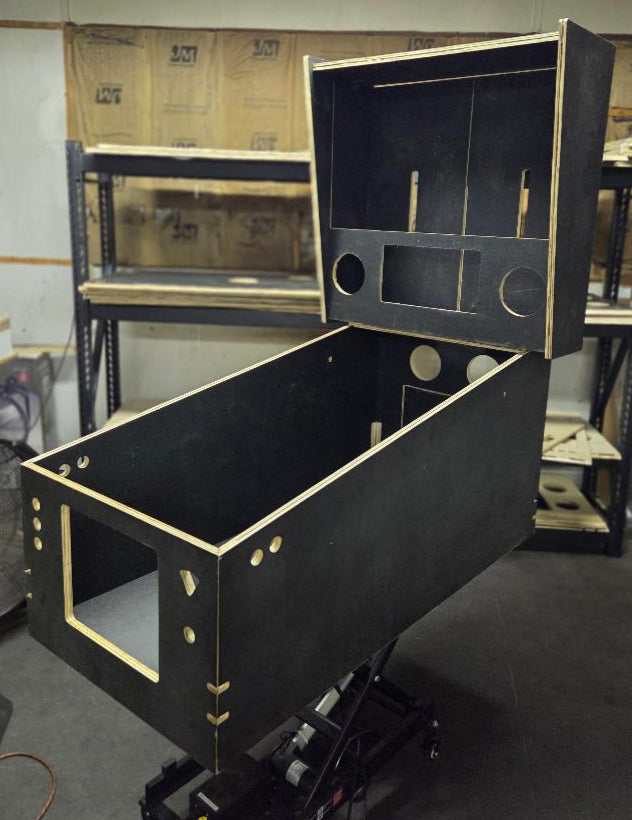

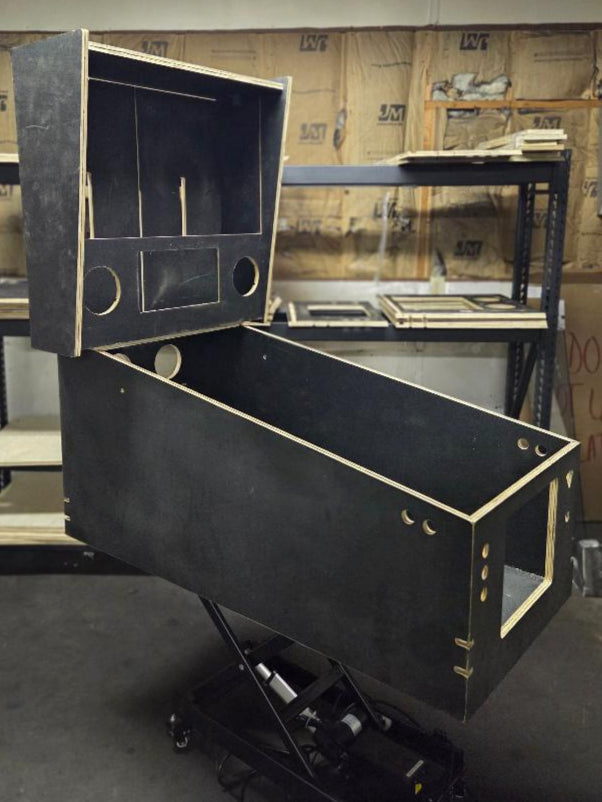

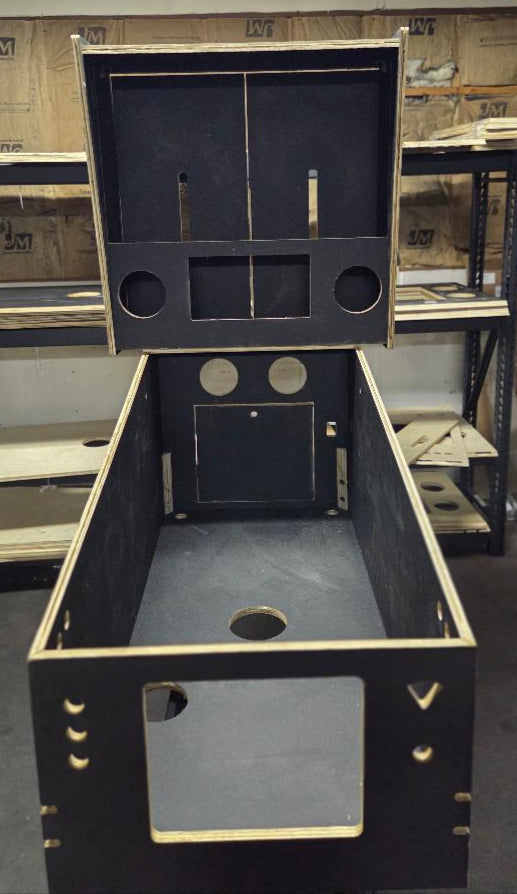

• The main cabinet has been redesigned and now is CNC cut with 45 degree Miter joints. The cabinet includes commercial grade Lamello connectors embedded in the 45 degree corners for easier assembly. These new corners eliminate the need to fill and sand the corners, again making the cabinet even easier to assemble then it was before. You will still need to use a high quality wood glue. Simply add glue to the corners assemble the corner you are working with then use the included allen wrench to tighten down the lamello connectors and strap overnight for an indestructible Virtual Pinball Cabinet.

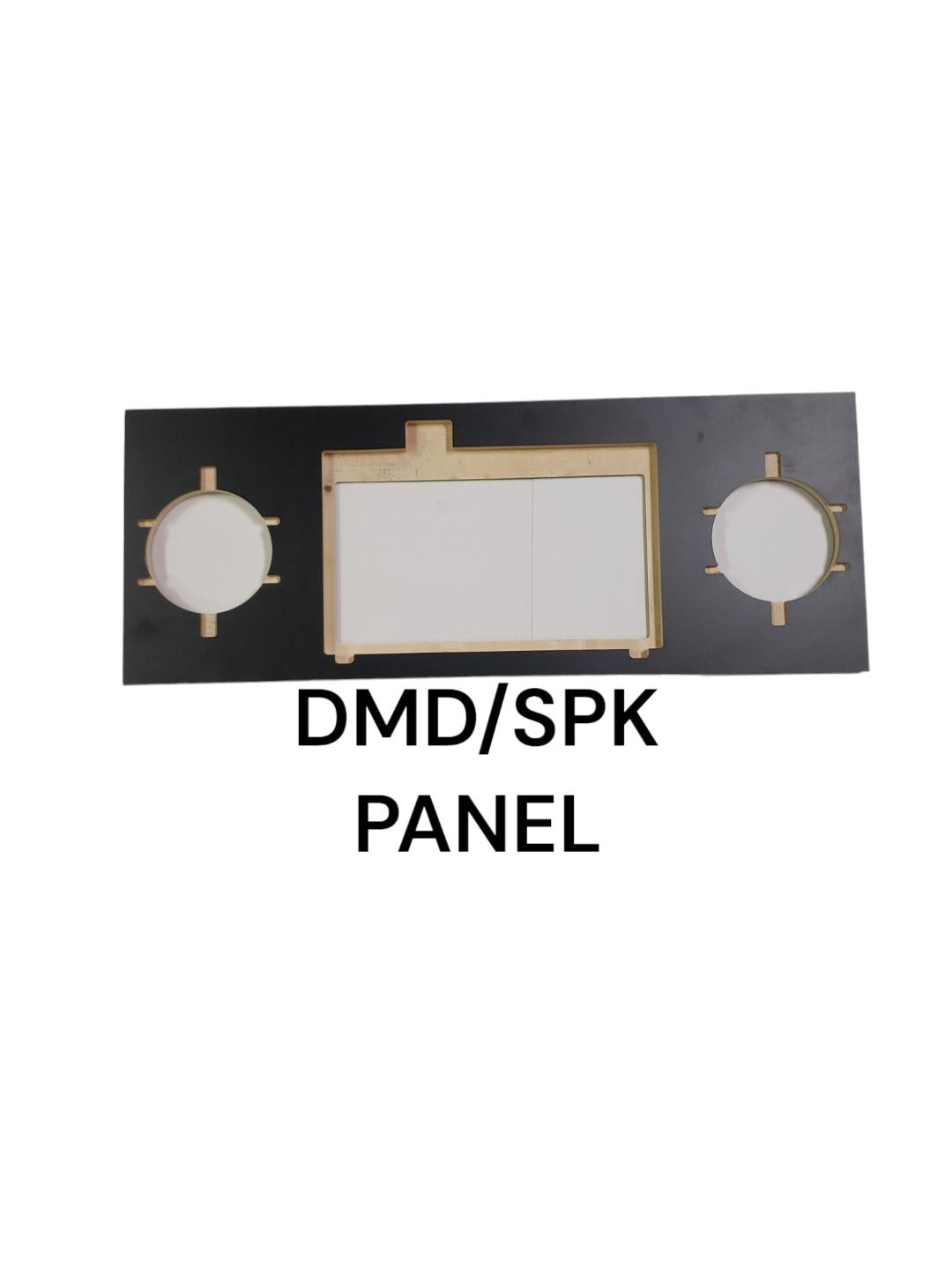

• DMD / Speaker Panel, DMD install area in rear of panel has been increased in size to better support a larger variety of LCD laptop replacement screens and standalone 15.6 inch Screen's
• In addition due to customer feedback We have also eliminated the pre drilled starter holes in the main cabinet and backbox as these really did not serve much of a purchase and just created additional areas that needed to be filled in and sanded.

• We are now including small pre drilled starter holes on the inside of the cabinet for the monitor mount front brace and the rear pivot point for the monitor mount.

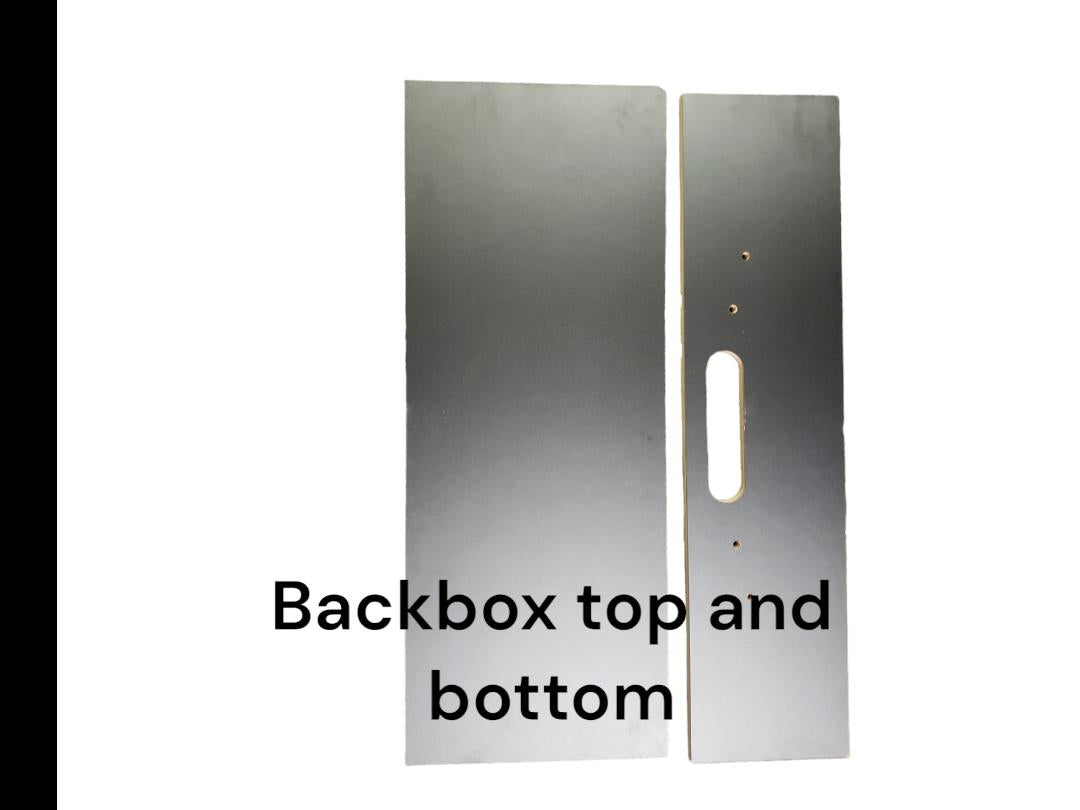

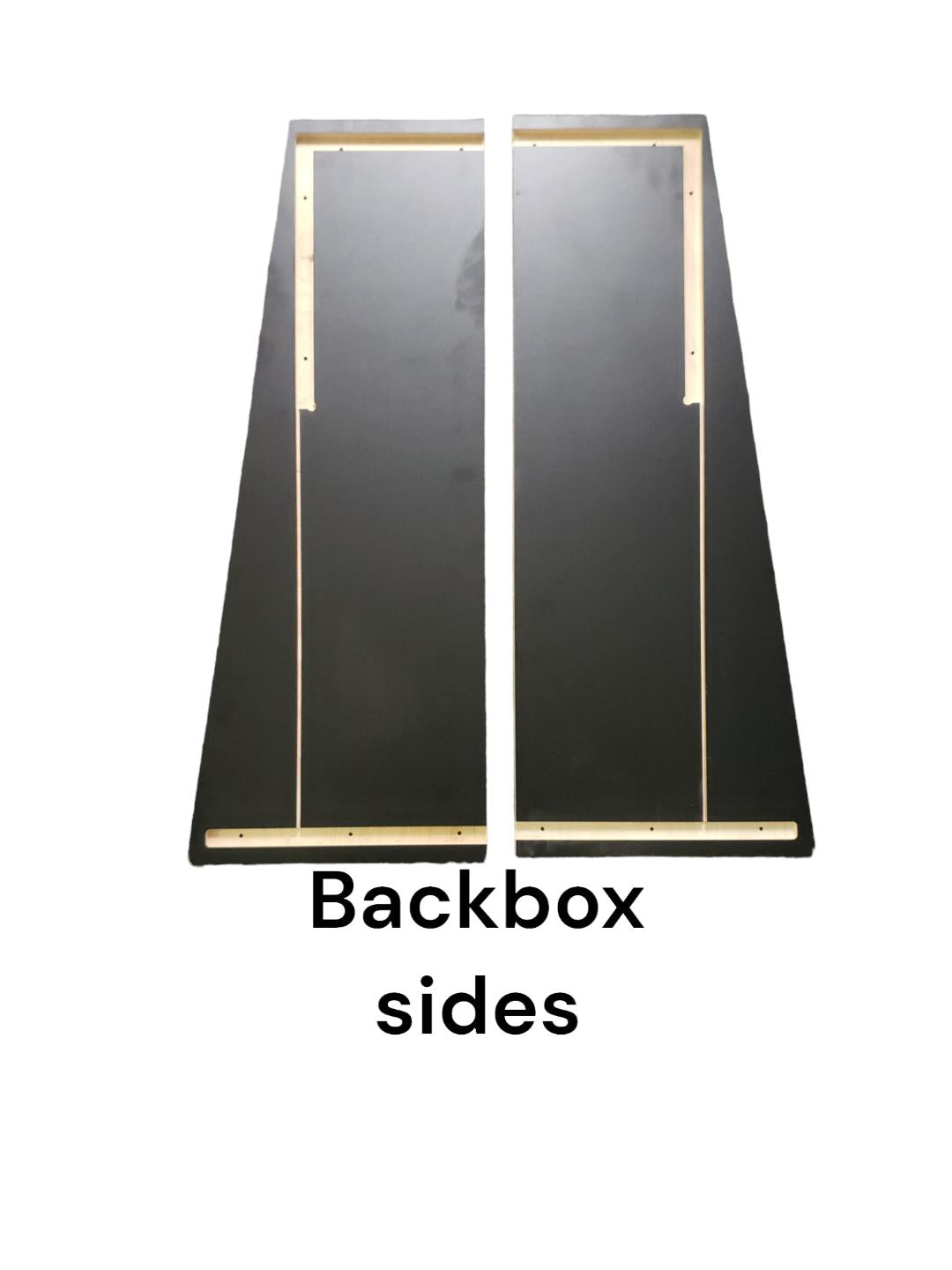

• CNC cut holes in the bottom of the backbox and sides of the main cabinet for backbox hinges.

1. The rear door or hatch for the Main cabinet has been increased in size to eliminate the gaps around the edges.

 All of our virtual Pinball Cabinets will include:

• High Quality black-coated birch plywood
• Pre-drilled button holes for pinball flippers, magnasaves, plunger, ball launch, start, back, and coin.
• Coin box area cutout for easy pinball coin box installation.
• 5.5 inch Subwoofer sub hole in middle of cabinet ( this will need to be modified based on your subwoofers dimensions)
• 1 Fan hole in bottom and 2 located in the rear plate.
• Pre-drilled holes for pinball cabinet leg bolts and leg plates.
• Pre-routed channels for pinball playfield glass side rails.
• Pre-cut speaker panel designed for 15.6-inch LCD DMD's and 5.25 inch speakers.

• Pre-routed channel for pinball backglass plexi.
• Pinball cabinet corner blocks included!

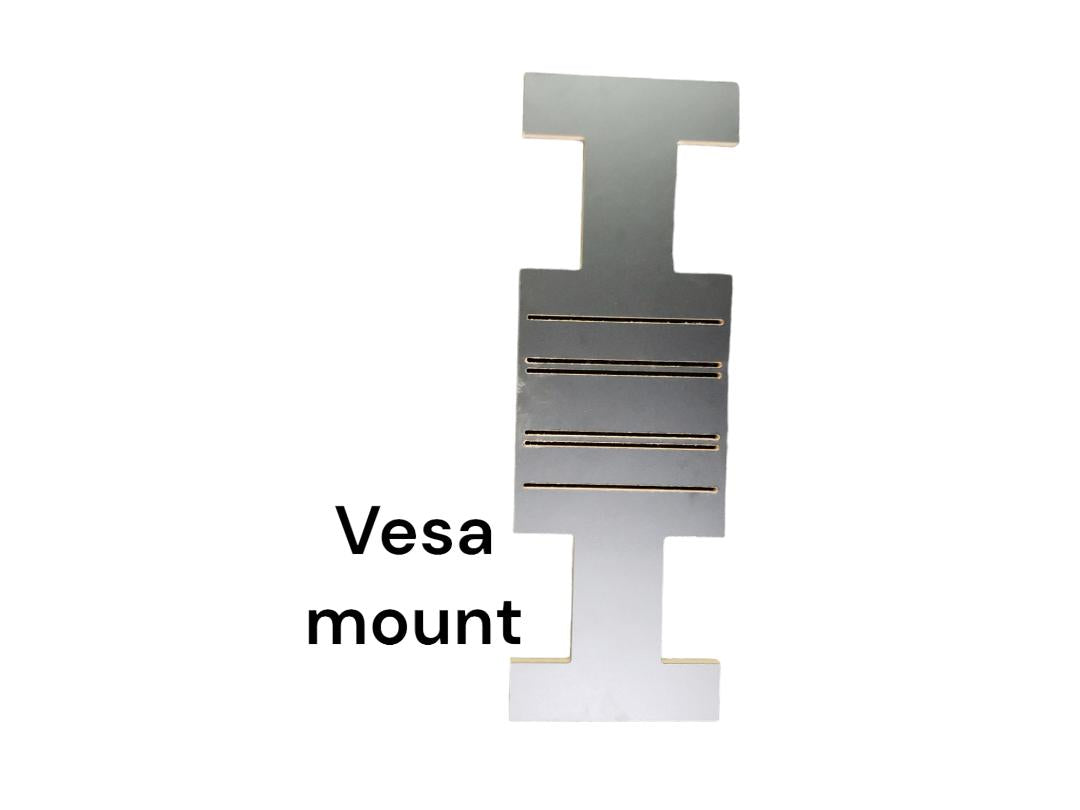

• VESA mount for pinball backglass monitor installation included.
• Easy to install rear hatch on backbox
• Legs, Bolts and leg bracket pictured are not included

*Custom-designed 48 inch monitor LG C  series virtual pinball playfield mount available $199
Stern Style Black Powder Coated Metal DMD/Speaker panel specifically designed for our cabinet available for $175

A new easier to install Rear BackBox hatch system is available for $40 ( This is much easier to install than the traditional rear backbox Doors.

T-molding channels pre routed in backbox sides and backbox top $110 (This will add 1 week to turnaround time)

 This is a woodworking project, so please be prepared to use nails, screws, high-quality wood glue, clamps, sanders, and anything else needed to put the flatpack together.

AS is the case with any coated plywood some minor chipping and flaking may occur when shipping. If it does simply uses your sander and a small bit of filler.

All flatpack sales are final.
