This is our older original design as shown in the Way of the Wrench Video series. This does not include any of the current upgrades done to our premium cabinets.
No 45 degree miters
No lamello connectors
No pre drilled holes inside the cabinet
No pre drilled holes for Backbox hinges
This is the last of these cabinets and is a great Deal for anyone looking to build a quality cabinet for less Money then our newer designed cabinets

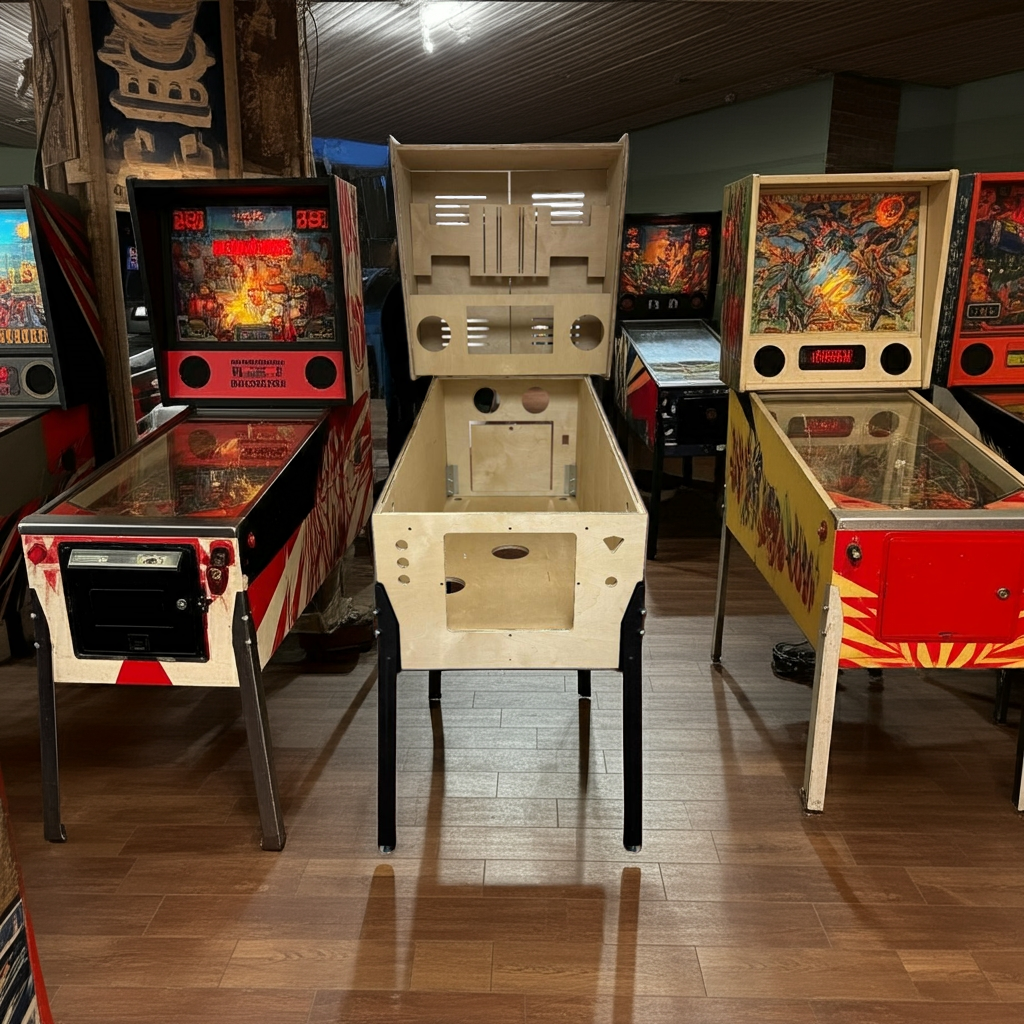

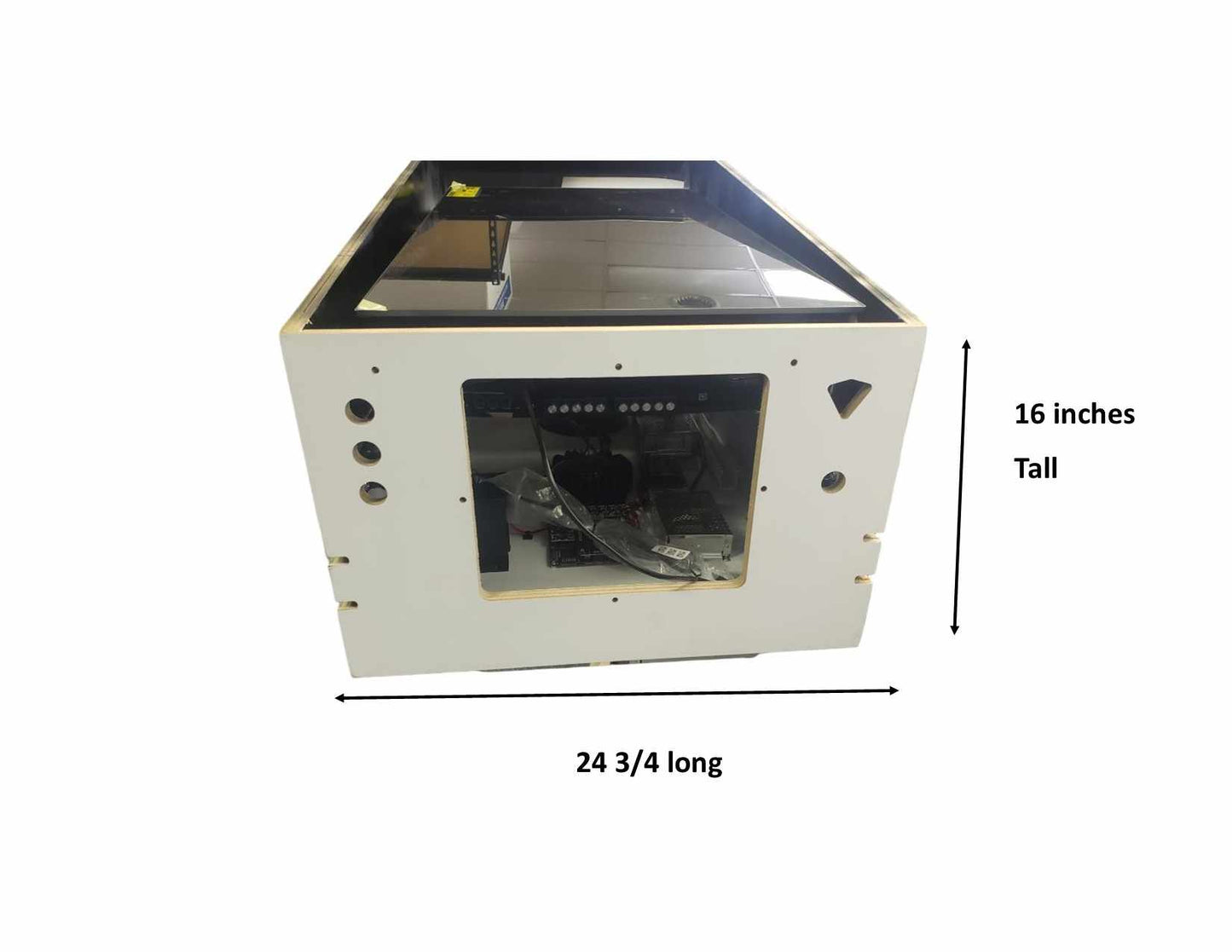

An Ultra Widebody Virtual Pinball Cabinet Flat pack, including a full backbox. Precision cut using a CNC Machine and 3/4-inch high-quality pinball cabinet plywood. This kit is designed to work with the LG C4 48 inch OLED TV. Inside playfield dimensions are 26" x 45" and should work with any standard accessories designed to fit a Bally/Williams widebody cabinet, excluding the Widebody Size Stainless Steel Lockdown Bar, and Williams/Bally Widebody Playfield Glass.
Your Tempered glass will need to be sourced locally. This should cut 43" X 26.5" inches and be 3/16"of an inch thick. Any additional Williams widebody parts will work with this cabinet., including the Williams/Bally WPC Stainless Steel Side Rails, and Williams/Bally Widebody Playfield Glass Rear and side rail Channels. Legs in photos are not included.
You can not install a rear matrix display in these cabinets if are choosing to go parallel with the glass. There is simply not enough room.
This flat pack is designed to work well with most 48-inch playfield tv/monitors however it was specifically designed to work with the LG 48 inch C series OLED monitors and most 32-inch backglass tv/monitors and 15.6 inch Full DMD displays.
Unlike other companies, we understand that when you are ready to build your virtual pinball cabinet, you need your items shipped quickly. Shipping eta is 5 to 7 business days.
All of our virtual Pinball Cabinets will include:
Pre-drilled button holes for pinball flippers, magnasaves, plunger, ball launch, start, back, and coin.
Coin box area cutout for easy pinball coin box installation.
5.5 inch Subwoofer sub hole in middle of cabinet ( this will need to be modified based on your subwoofers dimensions)
1 Fan hole in bottom and 2 located in the rear plate.
Pre-drilled holes for pinball cabinet leg bolts and leg plates.
Pre-routed channels for pinball playfield glass side rails.
Pre-cut speaker panel designed for 15.6-inch LCD DMD's and 5.25 inch speakers.
Pre-routed channel for pinball backglass plexi.
Pinball cabinet corner blocks and braces included!
VESA mount for pinball backglass monitor installation included.
Legs, Bolts and leg bracket pictured are not included
*Custom-designed LG C2,C3, C4 virtual pinball playfield mount available $199 T-molding channels pre routed in backbox sides and backbox top $110 (This will add 1 week to turnaround time)
This is a woodworking project, so please be prepared to use nails, screws, high-quality wood glue, clamps, sanders, and anything else needed to put the flatpack together.
