The Virtual Pinball Cabinet monitor mounting system includes the following parts
- monitor mount designed for LG C series 48-inch monitors
- 2 19-inch front spacer boards cut out for button clearance
- 1 19-inch spacer board for the rear left side
- 1 4-inch long 1/2 inch wide spacer board for the left side
- 1 23-inch board for the right side rear
- 1 dowel rod
- 2 c clamps
- 2 dowel rod hinges
Start by using a straight edge and attaching the left 19-inch board to the monitor mount using Screws and glue, or a nail gun.
Then attach the small 4-inch spacer behind the left front 19-inch board. This allows the sensor port on the LG monitor to have room.
Attach the rear 19-inch board without button cutouts to the left side.
Attach the other 19-inch board with the button cutouts to the right side of the monitor mount, along with the rear 23-inch long board.

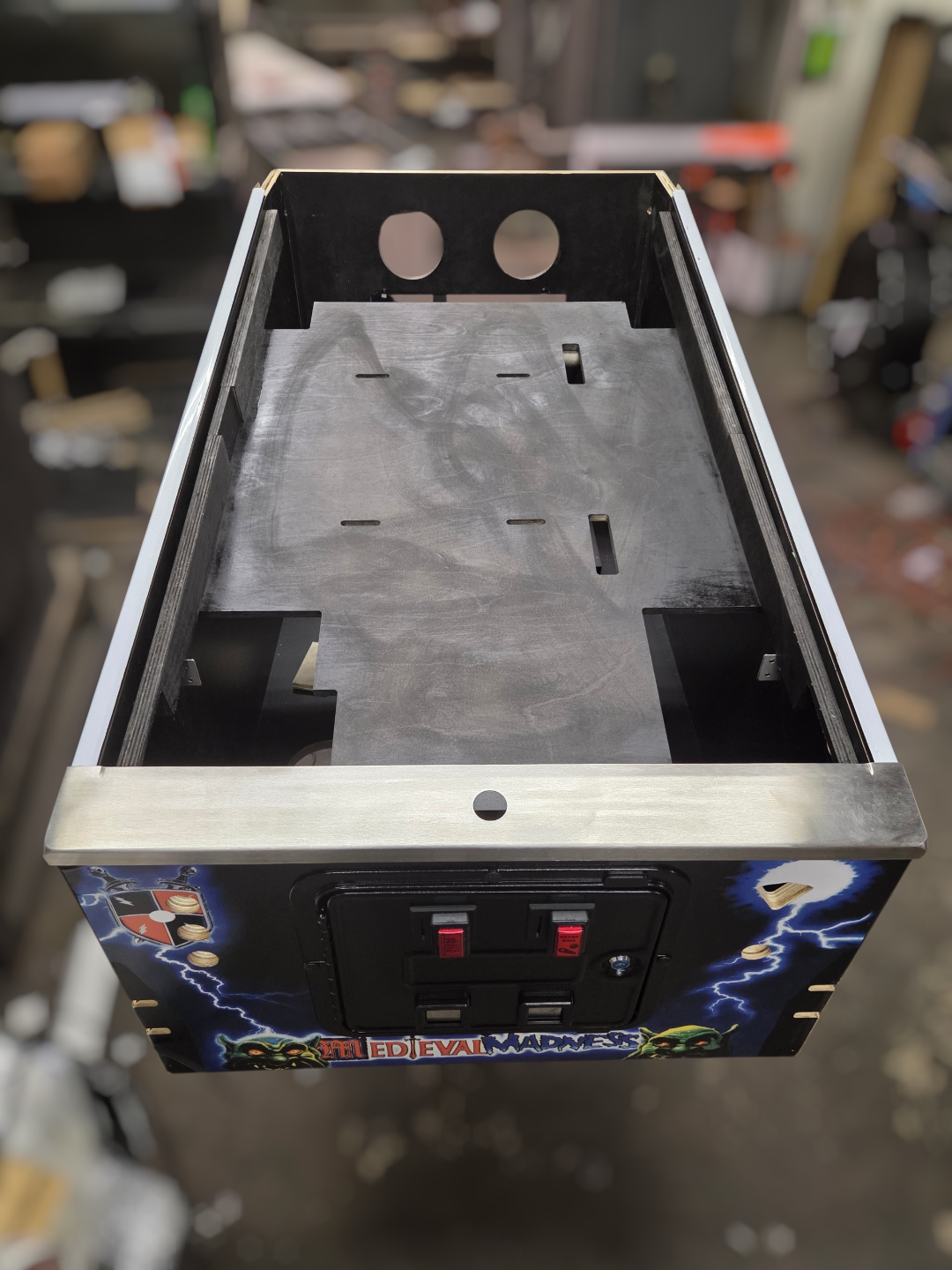

Install your 1-inch dowel rod into the virtual pinball cabinet using the provided hinges at the location you feel works best for your POV. Install your front 90-degree brackets. Place the monitor mount in your cabinet where you want it, and mark the underside where the dowel rod meets the monitor mounting system. Remove and then install the 2 C clamps included with the kit.
That's it, Easy Peasy!!!!!
